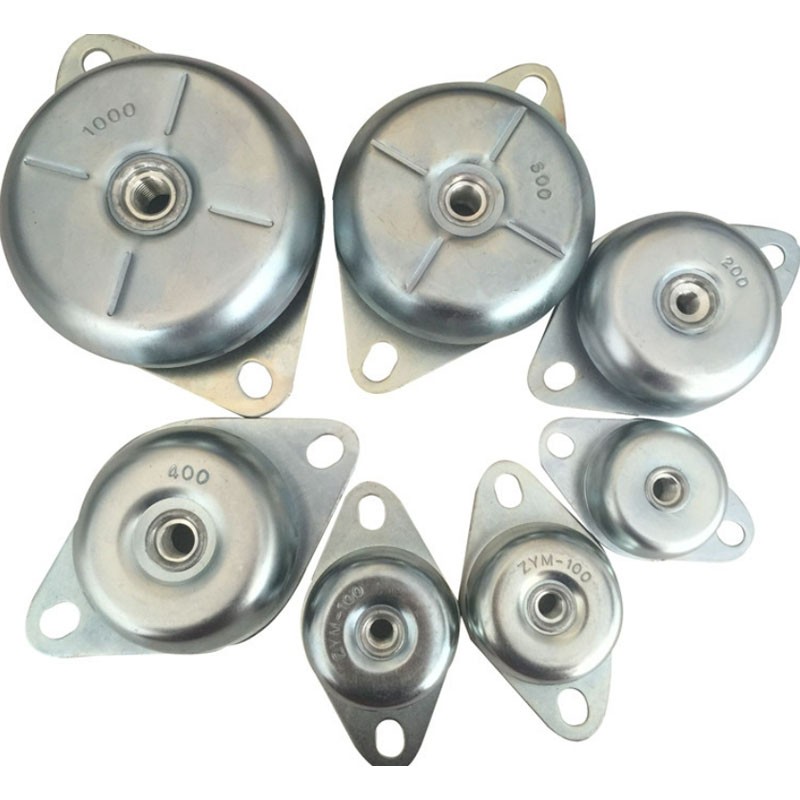

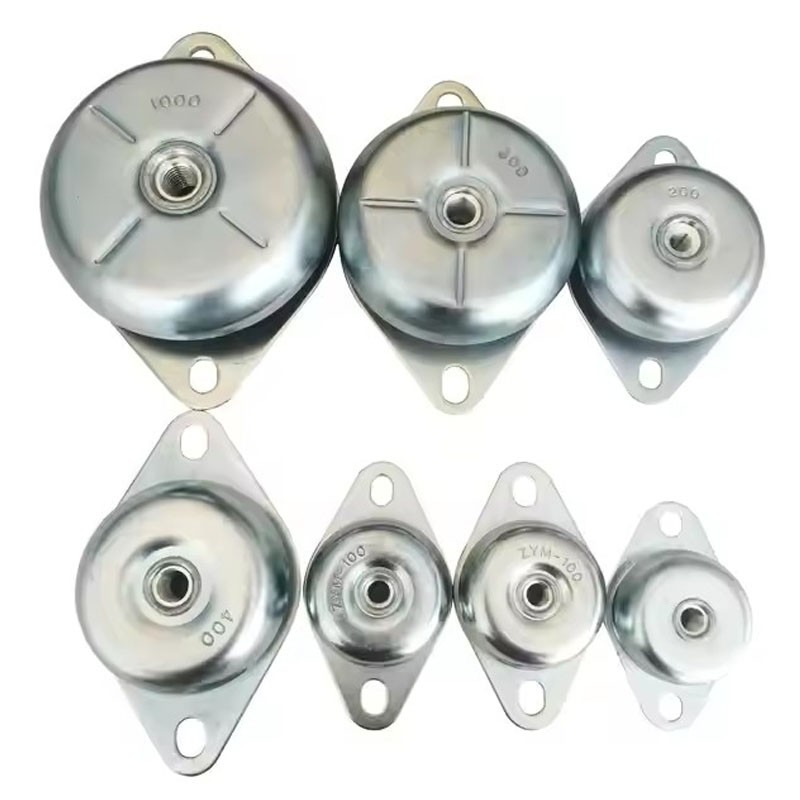

JZD flange disc (bell‑shape) rubber mount is heavy‑duty rubber‑metal bonded vibration isolator specially built for silent generator sets and large diesel engines. Reinforced steel flange base with pre‑drilled mounting holes enables fast bolt‑on installation. Large disc bearing surface evenly distributes heavy unit weight, avoids local rubber deformation under long‑term continuous load. It efficiently isolates axial & lateral vibration, cuts structure‑borne noise and prevents hardware loosening caused by engine oscillation.

Key Features

• Bell‑shaped flange‑disc design, excellent for both axial and lateral vibration damping
• High‑quality anti‑aging natural rubber compound; oil‑resistant, compression‑set resistant, temperature‑stable

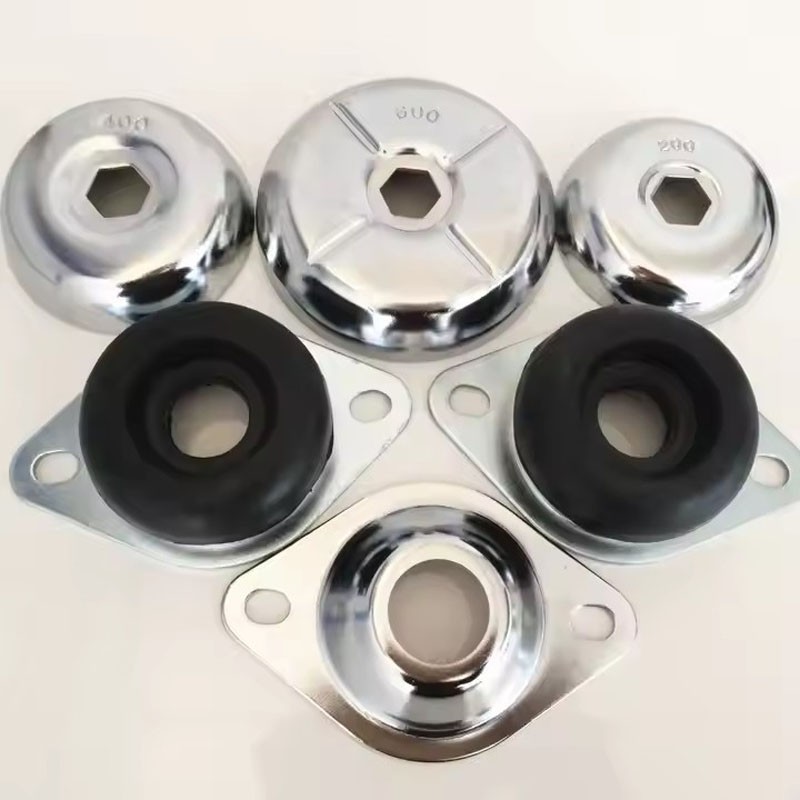

• Reinforced thick steel flange plate, galvanized anti‑rust treatment; integrated vulcanization to prevent rubber‑metal delamination
• Wide load‑range options: 60kg‑2000kg; standard thread M10 / M12 / M14 / M16
• Support custom rubber hardness, load‑capacity and dimension for special power equipment
• Simple installation, extend service life for generator, radiator, control cabinet and piping assemblies

Specifications

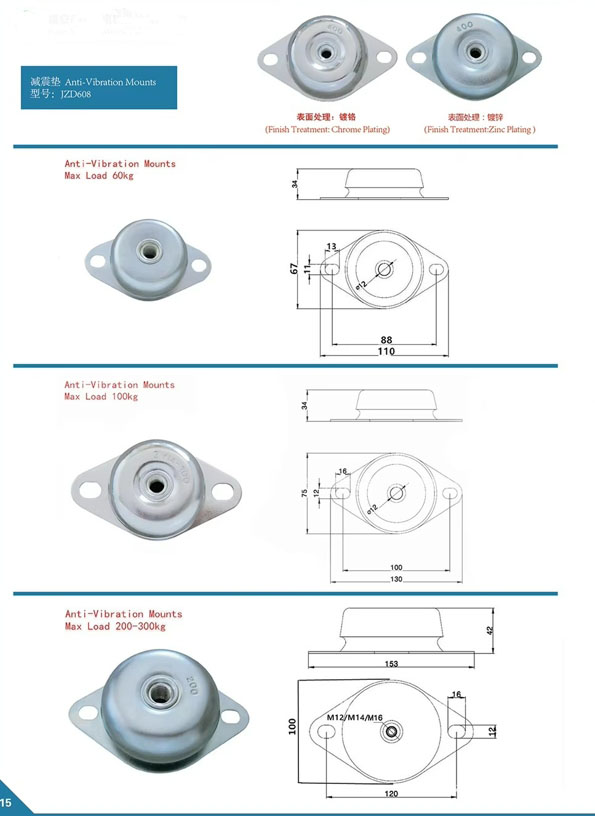

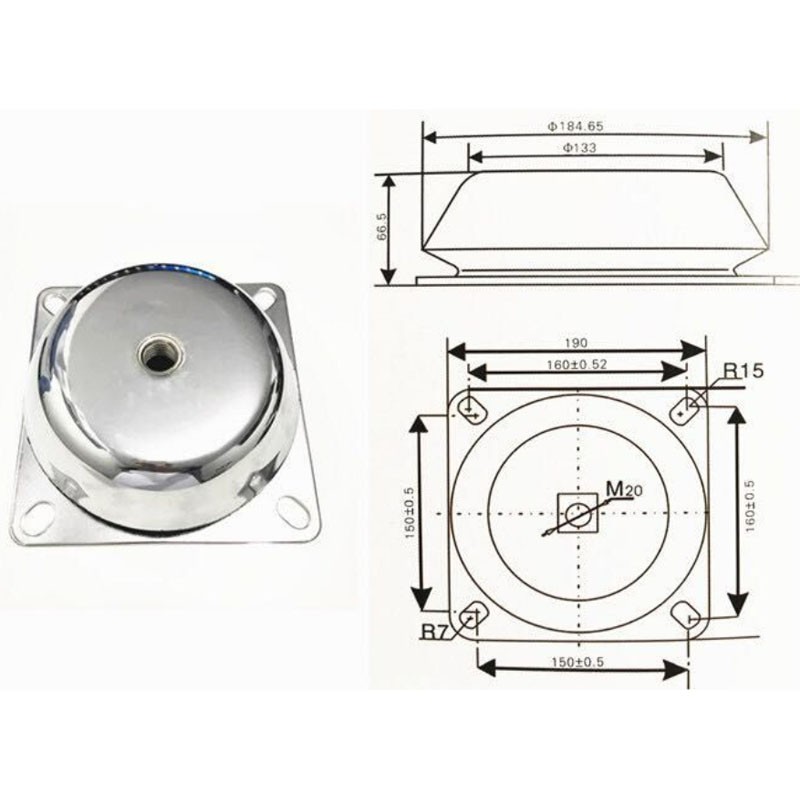

• Series: JZD flange disc / bell‑shape rubber mount
• Load capacity: 60kg ~ 2000kg
• Thread size: M10, M12, M14, M16
• Material: Galvanized steel flange + NR rubber (NBR/EPDM optional)
• Surface finish: Zinc‑plated / Chrome‑plated

Applications

Silent generator sets, heavy‑duty diesel engines, stationary power units, large compressors, industrial pumps, construction power equipment, generator cabinet assembly plants.

Selection Tip

Calculate single‑mount load: Total equipment weight ÷ quantity of supports × safety factor 1.6, then pick corresponding model with higher rated load.

Inquiry

Send equipment total weight, support quantity, required thread and load capacity for quotation.
