Supply black rubber shock pad VV type rubber buffer screw shock absorber double outer wire cylindrical motor shock column

Supply black rubber shock pad VV type rubber buffer screw shock absorber double outer wire cylindrical motor shock column

Category： Rubber mounting
Product description：It is used in water pumps, fans, cooling towers, diesel generators, air compressors, chillers and other equipment。
INQUIRY EMAIL

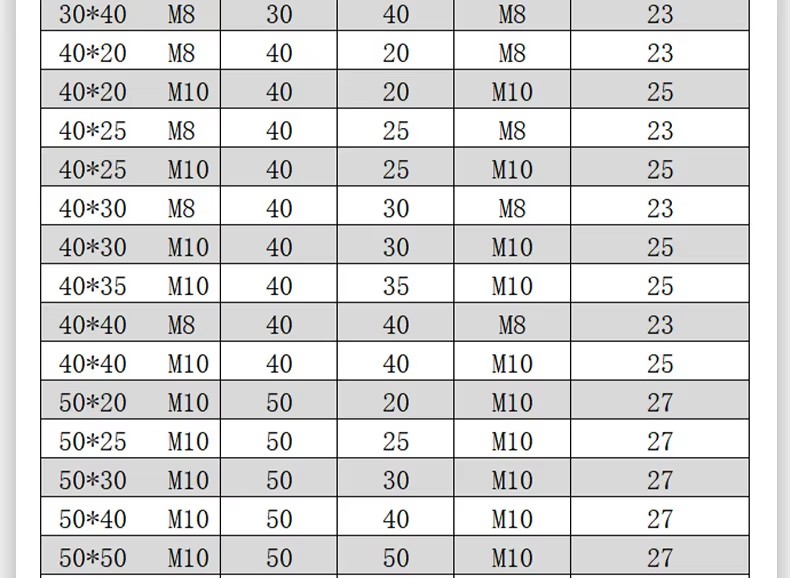

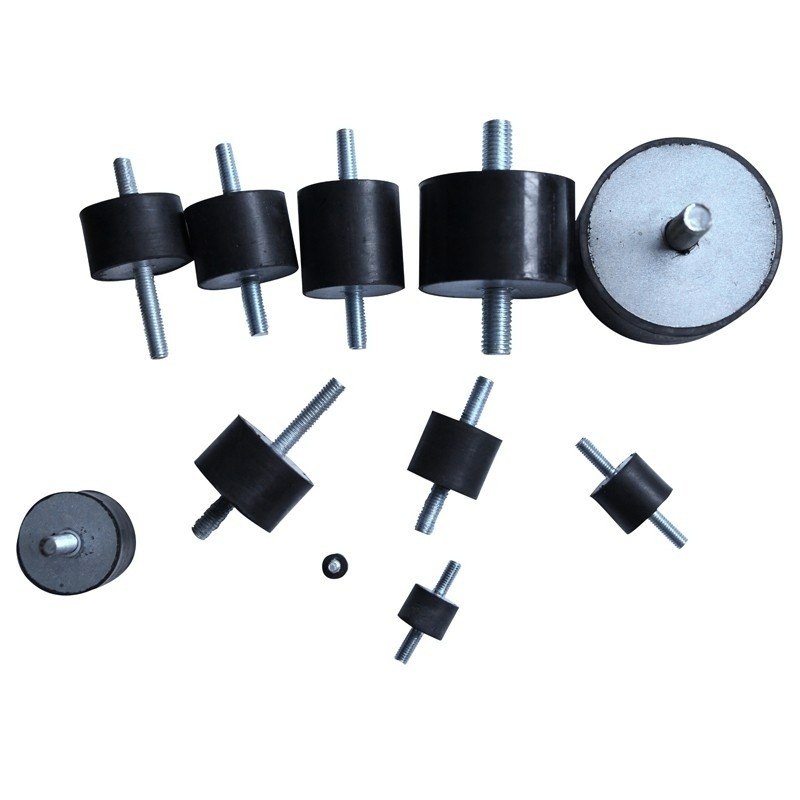

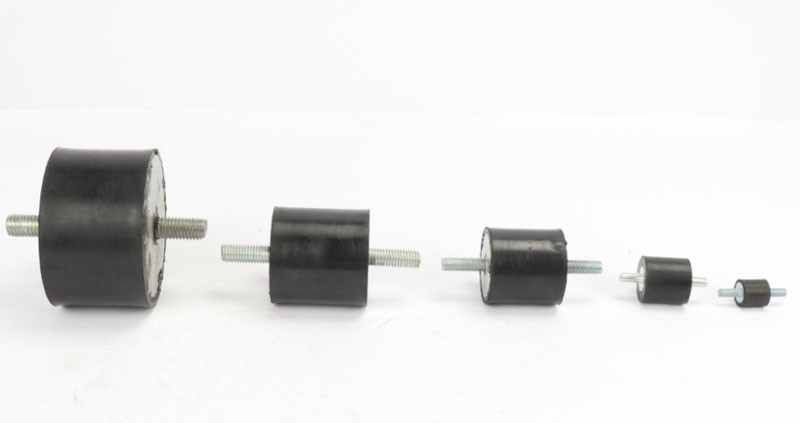

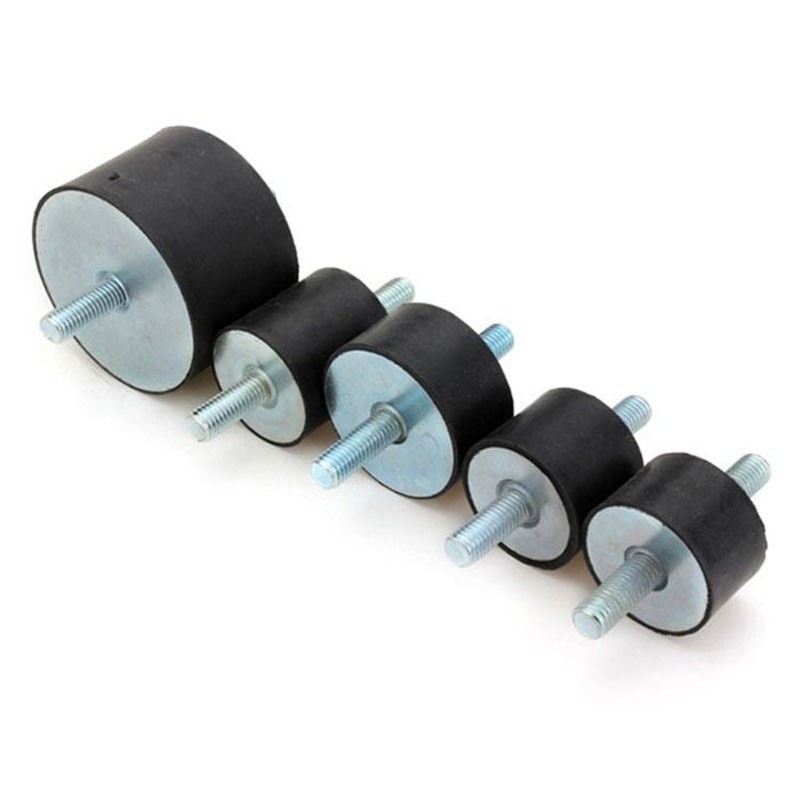

VV‑type cylindrical rubber mount is standard bobbin‑style vibration isolator with double external male threaded studs. Rubber and galvanized steel inserts are high‑pressure vulcanized into one piece. It absorbs compression and shear‑direction vibration, reduces structure‑borne noise and mechanical shock for rotating machinery. Complete standard size chart available; no mould charge for standard items, non‑standard OEM customization supported.

Note: Our full series covers VV, VD, DD, DE, VE, VP for diverse thread‑configuration demands.

Key Features

Double male‑stud (male‑male) threaded structure for simple through‑bolt installation

Firm vulcanized bonding, anti‑delamination under continuous dynamic vibration

Multiple rubber options: NR(default 60 Shore A), NBR, EPDM, SBR; hardness 40‑60±5 Shore‑A

Zinc‑plated steel studs for rust‑proof & corrosion resistance

Wide working temperature: ‑40℃ ~ +80℃

Rich standard dimensions: diameter 6‑150 mm, thread M3‑M20

Cost‑effective, in‑stock supply, custom drawings accepted

Specifications

Series: VV‑Type (double‑male‑stud cylindrical mount)

Thread: M3‑M20

Diameter range: 6‑150 mm

Material: Zinc‑plated steel + industrial rubber

Tensile strength: 8 Mpa; Elongation: 350%; Density:1.4 g/cm³

Color: Black

Packing: Carton / wooden crate

Applications

Industrial fans, blowers, water pumps, air compressors, chillers, diesel generators, small motors, dryers, washing machines, measuring instruments, inverters, electrical cabinets and light‑duty electromechanical equipment.

Inquiry

Kindly advise thread size, dimension or drawing for quotation.
