VD‑type rubber mount is cylindrical rubber‑metal vibration isolator with one male stud and one female threaded hole. Adopting high‑pressure vulcanization bonding technology between rubber and galvanized metal insert. It effectively isolates vibration, suppresses resonance and cuts noise transmission between equipment and base. Quick bolt‑on installation without extra modification. Standard sizes from M3‑M16, custom non‑standard dimensions available.

Key Features

• Male‑female mixed thread structure for flexible assembly
• Firm vulcanized bonding, anti‑degumming under continuous vibration & load
• Multiple rubber options: Natural Rubber, NBR, EPDM; adjustable rubber hardness
• Galvanized metal inserts for rust & corrosion resistance
• Excellent compression, aging & oil resistance for long‑time heavy‑duty operation
• Wide metric thread range M3‑M16; support OEM & custom drawing production

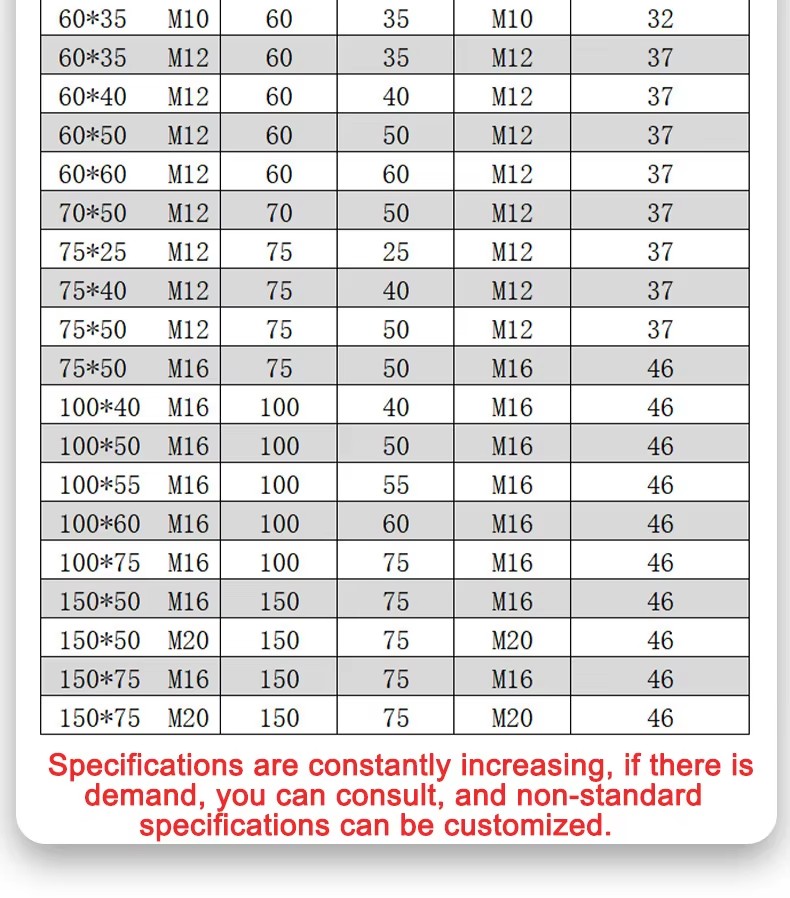

Specifications

• Structure: VD type (1 male stud +1 female threaded hole)
• Thread: M3 ~ M16 standard, custom thread available
• Material: Rubber + galvanized steel insert

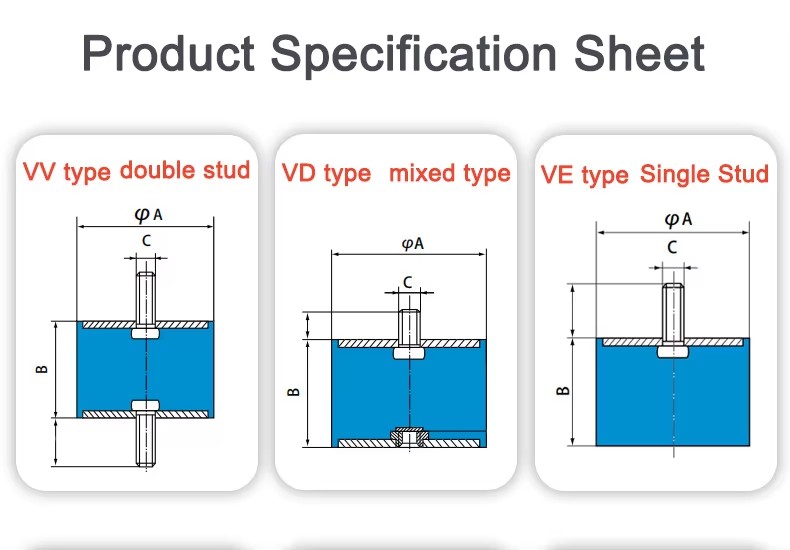

• Related series: VV(double‑stud), VE(single‑stud), DD(double female), DE(single female), VP(conical)

Applications

Air compressors, water pumps, generator sets, diesel / gasoline engines, welding machines, construction machinery, new‑energy equipment, railway transit, HVAC fans, automation equipment.

Inquiry

Please provide thread size, diameter & height, rubber material requirement for quotation.
