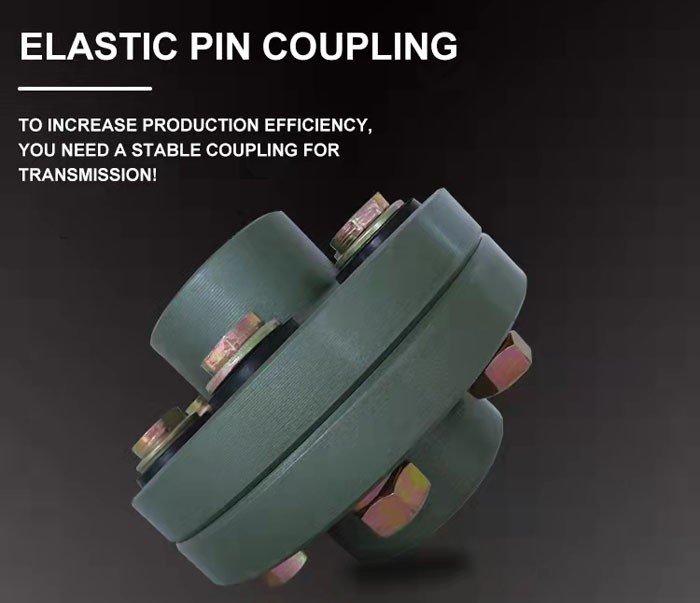

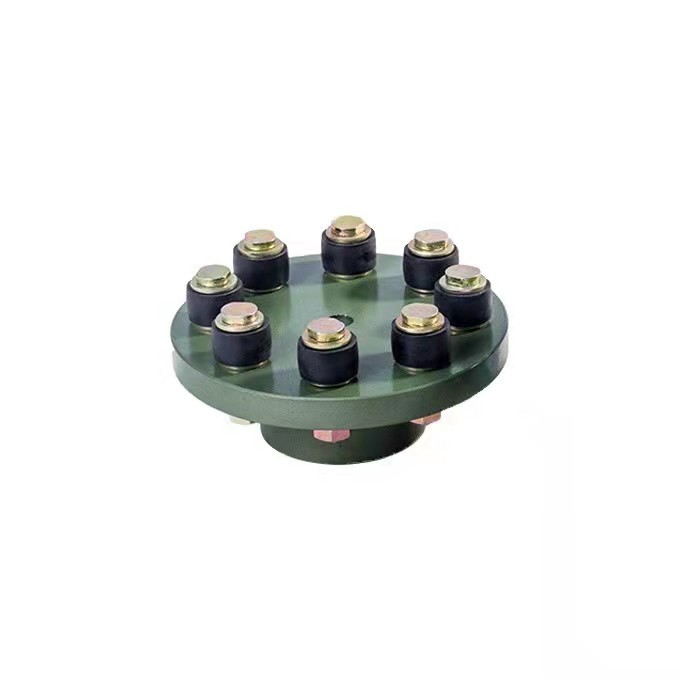

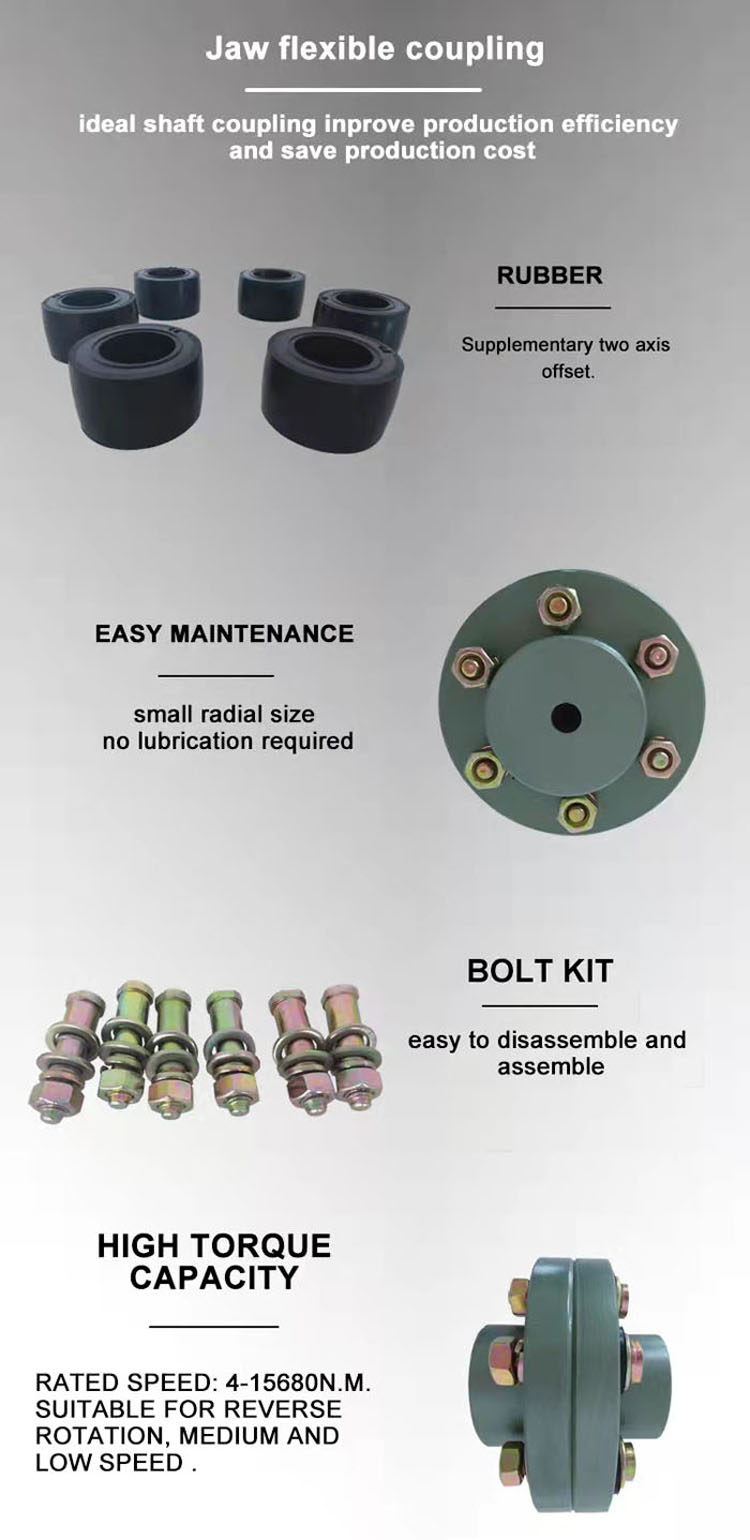

FCL flexible coupling is widely used,owing to its advantages:compact designing,easy installation,convenient maintenance,small size and light weight.As long as the relative displacement between shafts is kept within the specified tolerance,coupling will operate the best function and have a longer working life.

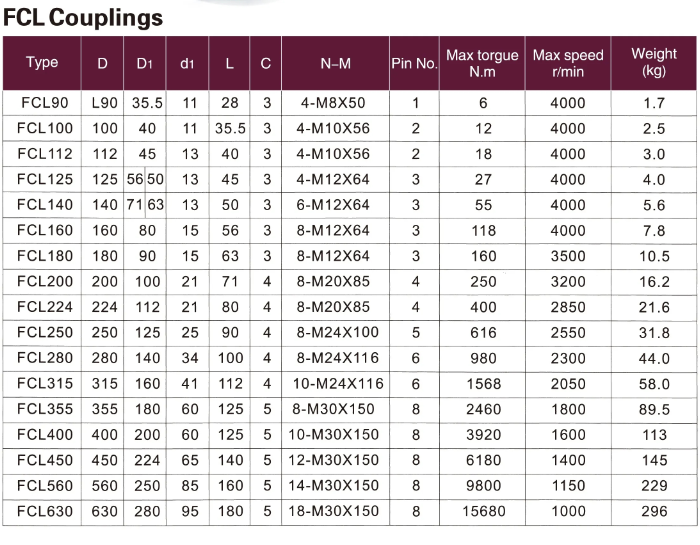

Size available from:90,100,112,125,140,160,180,200,224,250,280,315,355,400,450,560,630

1. A flexible structure that is made through combining a flange with a coupling bolt.

2. Easy to attach.

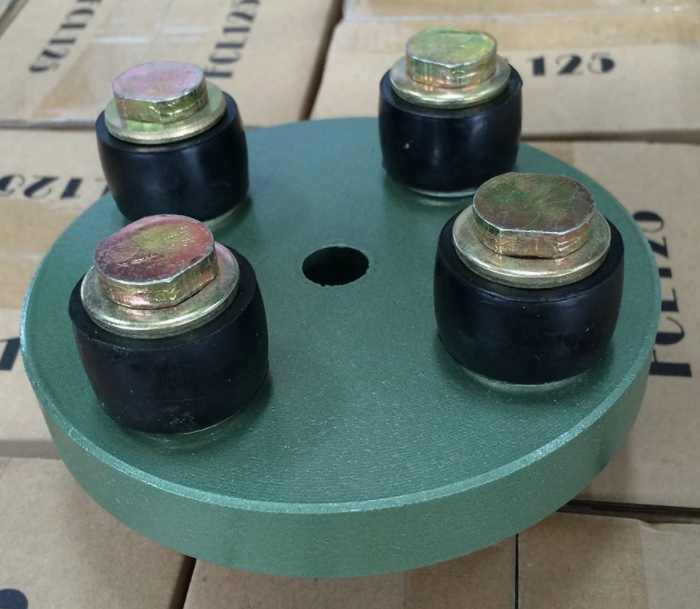

3. Easy to replace the bush by just removing the coupling bolt, which makes maintenance and preservation easy.

4. Absorbs misalignment such as eccentricity and declination, and absorbs screw vibrations to prevent noise.

5. Does not transmit the thrust load.

6. Material could be customized.
