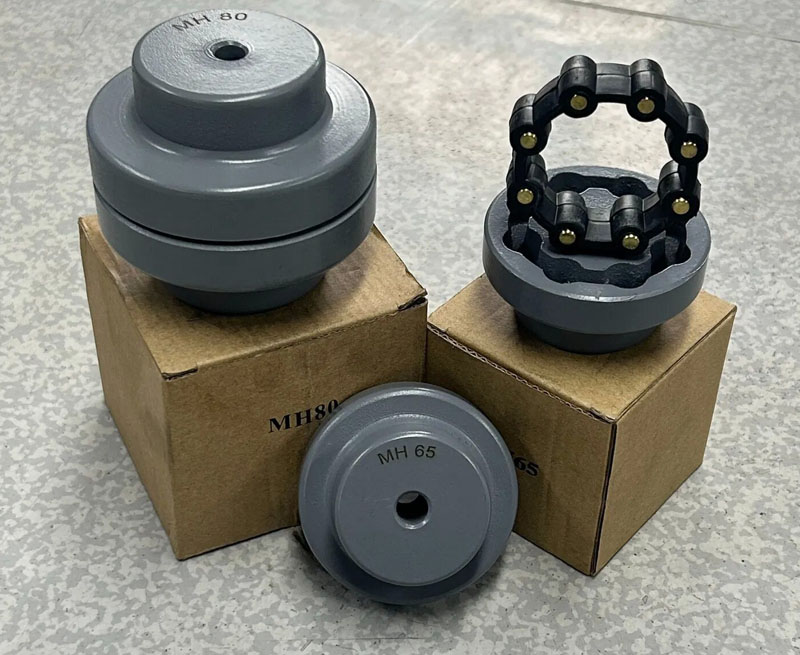

MH super‑flexible rubber couplings consist of two cast‑iron flanges plus one reinforced synthetic rubber insert with embedded steel cores inside teeth. This design delivers reliable torque transmission, good vibration‑damping performance and great misalignment compensation for industrial transmission systems.

• Cast‑iron flange: High‑strength cast iron for stable power transmission; also serves as outer protection for inner rubber element.
• Reinforced rubber insert: Special synthetic rubber with built‑in steel cores on teeth; improves durability, anti‑fatigue performance and service life.

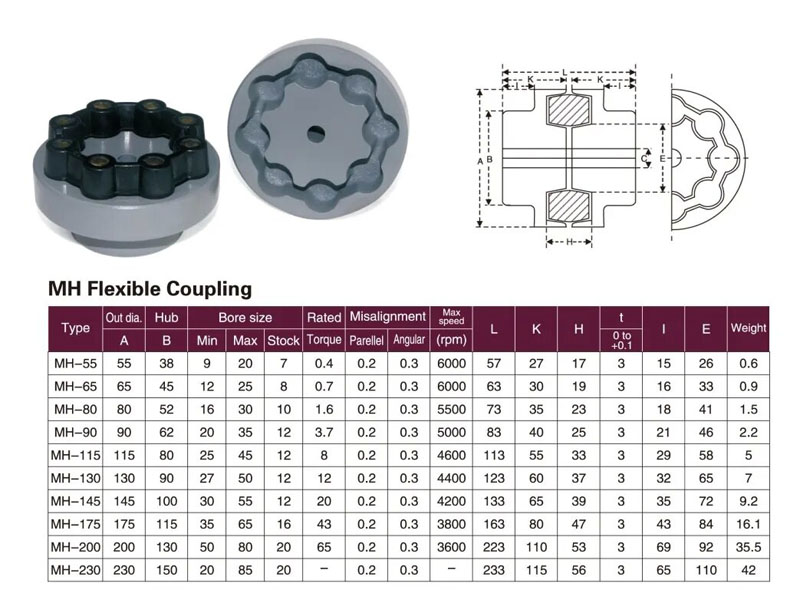

• Full model coverage: MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200, MH230.

Key Features

1. Good damping & shock absorption, reduce torsional vibration of transmission system
2. Compensate angular, radial and axial shaft misalignment
3. Reinforced steel‑core rubber teeth for long working life
4. Simple assembly, easy installation and maintenance
5. Suitable for heavy‑duty equipment like pumps, compressors and construction machinery

Widely used for power transmission equipment: pumps, fans, compressors, transport equipment, construction machinery, cement mixers, tractors, general transmission machines, metal‑working machines and rollers.

We support OEM & ODM service for MH flexible rubber coupling. Custom bore diameter, keyway, rubber material hardness according to your drawing or requirements. Please send us your working condition for proper model recommendation.

FAQ

• Q: What misalignment can MH rubber coupling absorb? A: It can compensate angular, radial and axial shaft misalignment for general industrial equipment.
• Q: Can you make non‑standard bore size? A: Yes, OEM custom bore & keyway service available.
