1.  Flexible jaw coupling is stable and reliable, with good vibration damping, buffering and electrical insulation properties.
2.  The structure is simple, the radial size is small, the weight is light, and the moment of inertia is small, which is suitable for medium and high speed applications.
3.  It has large axial, radial and angular compensation capabilities.
4.  High-strength polyurethane spider are wear-resistant and oil-resistant, have large bearing capacity, long service life, and are safe and reliable.
5. The flexible jaw coupling does not need lubrication, and the maintenance workload is small, and it can run continuously for a long time.
Applications
Manufacturing
Agriculture
Building Material
Oil and Gas
Technology and Science
High Quality
Corrosion resistance
Durable, Robust and Reliable
Bad Condition Resistance
Lower Weight--High Speed
High Performance
Strong Ultimate Tensile Strength
Perfect Surface Treatment
Durable, Flexible

Specifications:

material: TPU, CSM/SBR, NBR, nylon etc.

color: yellow, red, purple, green, black, beige etc.

surface: smooth

tensile strength: 8-55Mpa

hardness: 70-98Shore A

elongation: 400%-650%

density: 1.25g/cm3

elasticity impact: >25%

tear strength: 35-155KN/m

akron abrasion loss:<0.05cm3/1.61km

compression set (22h*70°C):<10%

working temperature: 120°C

standard size for polyurethane coupling:

GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180

GS5, GS7, GS9, GS12, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS550, GS65, GS75

MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13

MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200

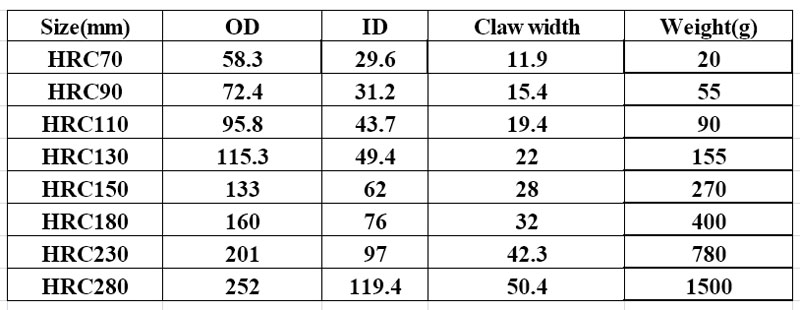

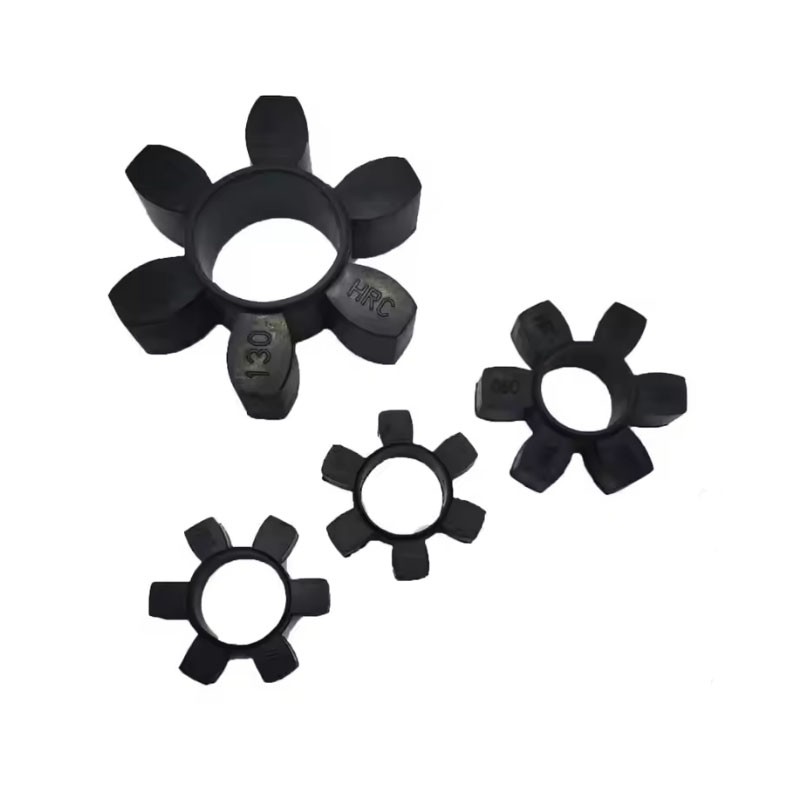

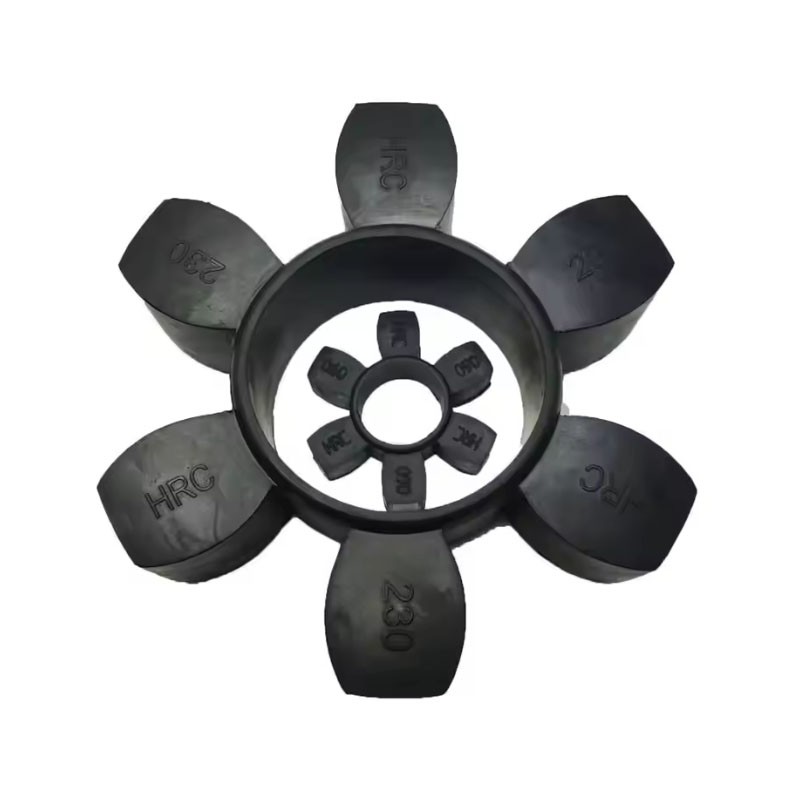

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276

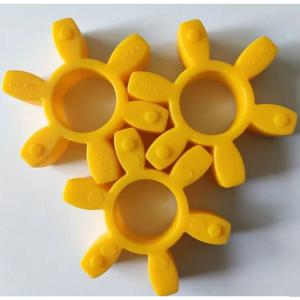

Joong Ang CR0050, 0070, 0010, 0020, 2035, 2035A, 3545, 4560, 6070, 7080




standard size for rubber coupling:

Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315

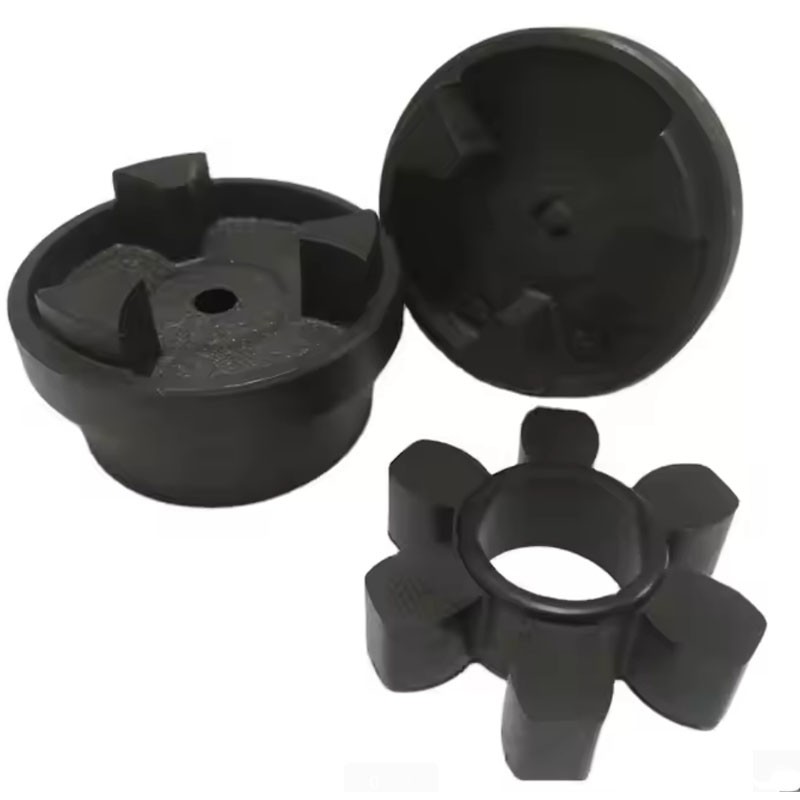

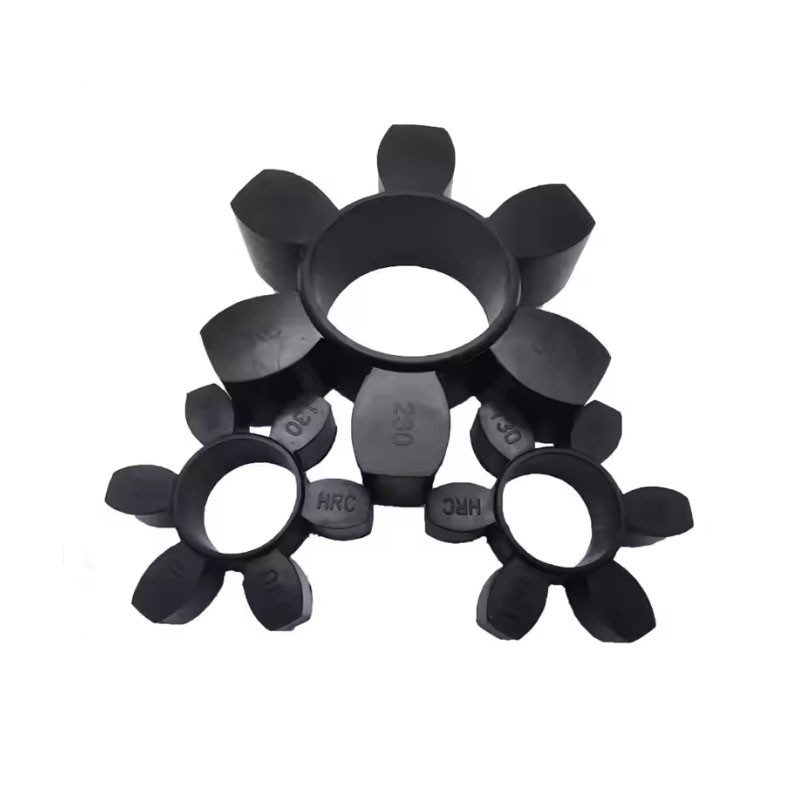

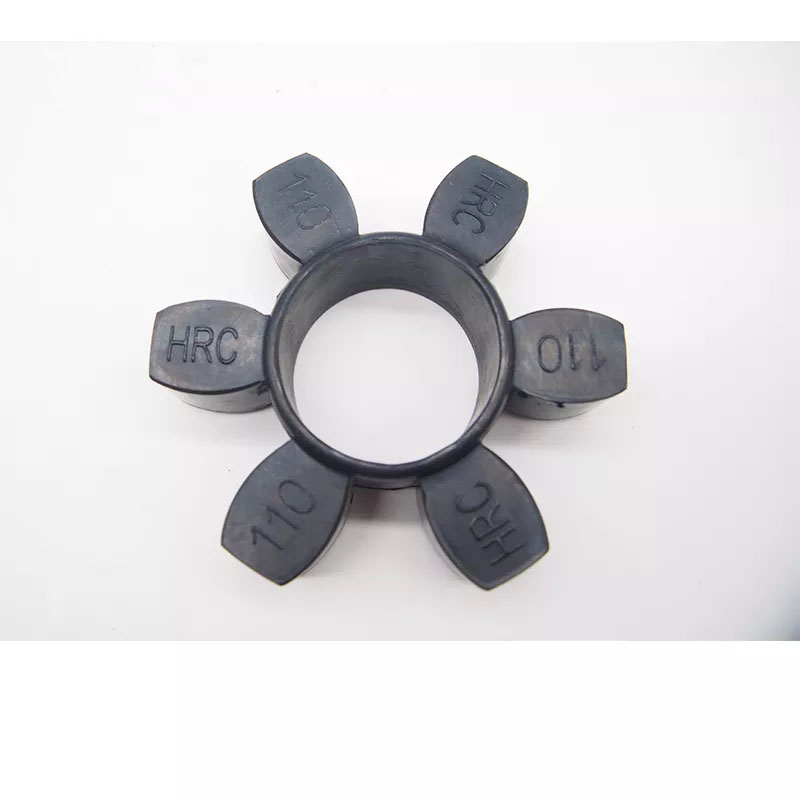

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225

NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265

NOR-MEX168-10, NOR-MEX194-10, NOR-MEX214-10, NOR-MEX240-10, NOR-MEX265-10

FCL1#, FCL2#, FCL3#, FCL4#, FCL5#, FCL6#, FCL7#, FCL8#

FCL90, FCL100, FCL112, FCL125, FCL140, FCL160, FCL180, FCL200, FCL224, FCL250, FCL280, FCL315, FCL335, FCL400, FCL450, FCL560, FCL630

Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J, 12J, 13J, 14J

Hytre 4H, 5H, 6H, 7H, 8H, 9H, 11H

Tyre F40, F50, F60, F70, F80, F90, F100, F110, F120, F140, F160

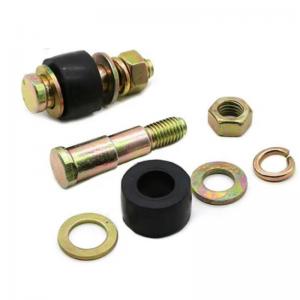

FCLpin #1, #2, #3, #4, #5, #6, #8

GR42, GR48, GR55, GR65, GR75



packing in bags, cartons, pallets or crates

OEM & customized size are agreed

special supply all kinds of steel coupling for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, Tyre

***when you enquiry, pls confirm type, size number and quantity***
